ABBAF205301113

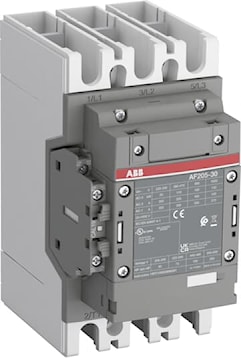

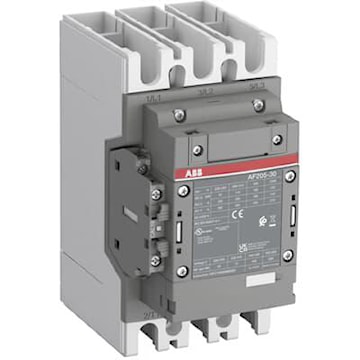

ABB AF205-30-11-13 192A 100-250VAC 3-Pole AF205 Series Contactor
Description
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 100-250 V, 50/60 Hz and DC.
Specifications
| Brand Name | ABB | Item Name | IEC Contactor |
| Type | Contactors | Coil Voltage | 100 - 250 VAC/VDC |
| Contact Configuration | 3 NO Main, 1 NO, 1 NC Auxiliary | Number of Poles | 3 |
| Terminal Connection | Screw | Dimensions | 105 mm W x 152 mm H x 196 mm D |
| Series/Model | AF205 | Voltage Rating | 1000 V |
| Amperage Rating | 192, 300 A | Frequency Rating | 50/60 Hz |
| HP Rating | 200 hp at 500 - 600 V | Conductor Size | 2 x 350 MCM |
| Temperature Rating | -25 to 50 °C | Environmental Conditions | -40 to 70 °C Storage, 3000 m Altitude |
| Standards | CB, CE, RINA Certified, RoHS Compliant | Application | For Motor Starting, Isolation, By-Pass and Distribution Application Up to 1000 V |
| UPC | 888614148017 |
Packages
| 1 - UNIT - 1 |
