SIE3RT20232AC20

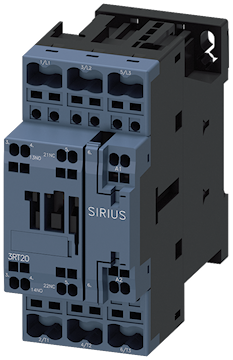

SIEMENS 3RT20232AC20 CONT 3P 9A 400V 4KW 24VAC 1NO1NC SPR SIZE S0
Description
power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 24 V AC, 50/60 Hz, auxiliary contacts: 1 NO + 1 NC, spring-loaded terminal, size: S0
Specifications
| Brand Name | Siemens | Sub Brand | Sirius |
| Item Name | Power Contactor | Coil Voltage | 24 VAC |
| Power Rating | 4 kW at 400 V | Phase | 3 |
| Contact Configuration | 1 NO, 1 NC | Number of Poles | 3 |
| Terminal Connection | Spring Loaded | Dimensions | 45 mm W x 97 mm D x 102 mm H |
| Mounting Type | Screw and Snap-On | Voltage Rating | 690 VAC |
| Amperage Rating | 9 A | Frequency Rating | 50/60 Hz |
| Conductor Size | 20-14 AWG | Frame Size | S0 |
| Degree of Protection | IP20 | Temperature Rating | -25 to 60 °C |
| Environmental Conditions | 10 - 95% Humidity | Standards | CCC Certified, CSA Certified, RCM, EAC, CE Certified, ROHS Compliant, DVE, KC Certified, UL Listed |
| UPC | 662643912746 |
Packages
| 1 - UNIT - 1 |
