hofa363012lp

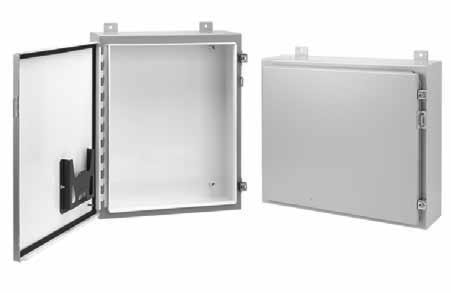

HOFFMAN 36 x30 x12 Hoffman Type 12 Steel Wall-Mount Enclosure Continuous Hinge with Clamps, Gray
hofa363012lp
HOFFMAN 36 x30 x12 Hoffman Type 12 Steel Wall-Mount Enclosure Continuous Hinge with Clamps, Gray
Price
$1,570.72
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:HOFFMAN
Manufacturer #:A363012LP
Description
Continuous-hinge with clamps type 12 wall-mount enclosure, 16 gauge steel enclosure, 14 gauge steel door, Seams continuously welded and ground smooth, External wall-mounting brackets, Screw-down door clamps, Removable heavy-gauge continuous hinge pin, Data pocket is high-impact thermoplastic, White inside with ANSI 61 grey finish outside, Requires a bright white interior to increase control visibility, Includes a padlocking hasp and staple for security and screw-down clamps for secure closure.
Seams continuously welded and ground smooth
External wall-mounting brackets for easy installation
Formed external return flanges around all sides of enclosure opening
Screw-down door clamps
Removable heavy-gauge continuous hinge pin
Hasp and staple for padlocking
Data pocket is high-impact thermoplastic
Collar studs provided for mounting optional panels
Bonding provision on door
Removable door with continuous hinge
Specifications
| Brand Name | nVent Hoffman | Sub Brand | Hoffman |
| Item Name | Enclosure | Type | Two Lock, Single Door |
| Width | 762 mm | Depth | 305 mm |
| Height | 914 mm | Cover Type | Continuous Hinged with Clamp |
| Gauge | 14 and 16 | NEMA Rating | NEMA/EEMAC Type 12, 13, IP65 |
| Material | Steel | Finish | Powder Coat |
| Color | Gray | Standards | cUL Listed, UL 508A, UL File Number E61997, CSA C22.2 No. 94, CSA File Number 42186, IEC 60529 |
| Application | For Applications Requiring a Bright White Interior to Increase Control Visibility | UPC | 783510285401 |
Packages
| 1 - UNIT - 1 |
