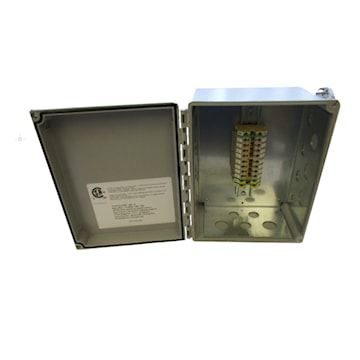

NVENT THERMAL 8 inch x 6 inch x 4 inch Fiberglass Junction Box with Pre-Drilled Earthing Plate
raymijb864a
NVENT THERMAL 8 inch x 6 inch x 4 inch Fiberglass Junction Box with Pre-Drilled Earthing Plate
Price
$689.01
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:NVENT THERMAL
Manufacturer #:T0002069
Description
The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge pin provides a secure seal and double latching creates added security. Typically, it is used as a single cable power junction box or splice box.
Simple and fast to install: labor saving as no bonding wires are required between the hubs, connectors and PE terminal blocks
Continuous hinge pin, provides a secure seal and double latching creates added security
Quick release corner latches, provide unobstructed access
Corrosion resistant, enclosure and latches
Heating units connected to enclosure via standard conduit hubs
Reliable during long life: 10 year extended product warranty available, maintenance free
Specifications
| Brand Name | nVent | Item Name | MIJB Junction Box with Earth Plate |
| Type | Junction Boxes | Length | 8-1/2 in |
| Width | 8-1/2 in | Depth | 3.94 in |
| Material | Polymer | Color | Light Gray |
| Amperage Rating | 65 A | NEMA Rating | NEMA 4X |
| Cable Entry | 11 | Temperature Rating | -50 to 40 °C |
| For Use With | MI Cables and MI Heating Units | Standards | CSA Type 4X, UL 508A, cCSAus Certified |
| Application | Pipe Freeze Protection; Tank Heating; Surface Snow Melting; Long Pipeline Heating; Frost Heave Prevention; Roof and Gutter Deicing; Process Temperature Maintenance; Offshore/Maritime Winterization | UPC | 715629010407 |
Packages
| 1 - UNIT - 1 |
