cwdahacu1000

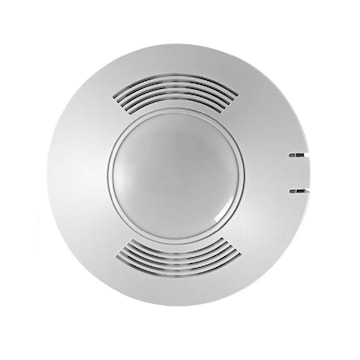

COOPER INDUSTRIES 1000 Sq.Ft. 32kHz 2-Way MicroSet Ultrasonic Low Voltage Ceiling Sensor, White
cwdahacu1000
COOPER INDUSTRIES 1000 Sq.Ft. 32kHz 2-Way MicroSet Ultrasonic Low Voltage Ceiling Sensor, White
Price
$274.56
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:COOPER INDUSTRIES
Manufacturer #:AHAC-U-1000
Description
The MicroSet ultrasonic low voltage occupancy sensing ceiling sensor is a motion lighting control that is used for energy savings and convenience.Design Features: - MicroSet self-adjusting time delay and sensitivity- Optional built-in light level sensor- Optional BAS/HVAC isolated relay- Products tested to NEMA WD 7 - 2011 Occupancy Motion Sensors Standard- Selectable walk-through mode- Dual relay control
Specifications
| Brand Name | Cooper Industries | Sub Brand | MicroSet |
| Item Name | Ceiling Sensor | Type | Low Voltage, Self-Adjustable |
| Voltage Rating | 10 - 30 VDC | Amperage Rating | 25 mA |
| Sensor Type | Ultrasonic | Viewing Angle | 360° |
| Coverage Area | 1000 ft² | Color | White |
| Mounting Type | Ceiling | Series/Model | AHAC-U |
| Frequency Rating | 40 kHz | Maximum Load Capacity | 1 A at 30 VDC |
| Response Time | 15 sec - 10 min | Lens Type | Green LED |
| Material | Polycarbonate Resin | Dimensions | 4-1/2 in L x 0.8 in W x 1.42 in H |
| Temperature Rating | 32 - 104 °F | Standards | cULus Listed, FCC Compliant, NOM Certified, RoHS Compliant |
| UPC | 032664748868 |
Packages
| 1 - UNIT - 1 | 10 - UNIT - 10 | 100 - UNIT - 100 |
