cab18/5lvt150

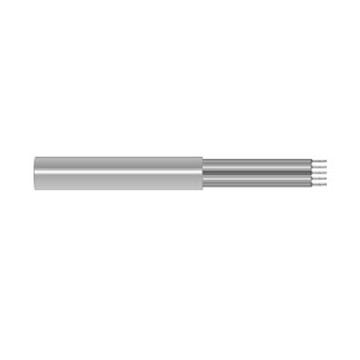

READYWIRE 150m 18/5C FT4 Tevelec West Multi-Conductor Unshielded Low Voltage Thermostat Cable
cab18/5lvt150
READYWIRE 150m 18/5C FT4 Tevelec West Multi-Conductor Unshielded Low Voltage Thermostat Cable
Price
$1.8370
/ M
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:SONECABLE
Manufacturer #:LVT 18/5 150M
Description
Multi-conductor unshieded cable. Solid bare copper conductor material. PVC insulation. 30 V operating voltage. Used in home, office, automobile and all other buildings. Found in computer systems, control systems, electronics, business machines, cash registers, alarm systems, audio speakers, POTS telephone systems, thermostats, doorbells and other low voltage remote systems. Thermostat controls, door bells, security systems and other low voltage remote control systems where voltage does not exceed 30 volts.
Specifications
| Brand Name | Approved Vendor | Item Name | Thermostat Wire |
| Type | Low Voltage | Wire Gauge Size | 18 AWG |
| Stranded/Solid | Solid | Number of Conductors | 5 |
| Length | 150 m | Conductor Material | Bare Copper |
| Jacket Material | PVC | Color | Brown |
| Voltage Rating | 30 V | Outside Diameter | 0.263 in |
| Insulation Material | PVC | Insulation Thickness | 0.015 in |
| Jacket Thickness | 0.03 in | Temperature Rating | -15 to 60 °C |
| Weight per 100 Foot | 48 lb | Standards | CSA C22.2 No. 35, FT4 Flammability Rating |
| Application | For Class 2 Circuits, in Exposed or Concealed Wiring or use in Raceways, in Dry or Damp Locations |
Packages
| 150 - UNIT - 150 |
