CAB2/3AC90AL

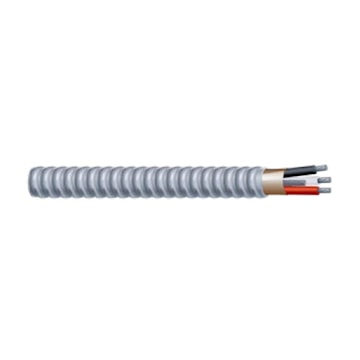

2/3C 600V AC90 Armored Cable, Aluminum Conductor
Description
Applications: For exposed and concealed wiring in dry, locations. For use in ventilated, non-ventilated and ladder-type cable trays in dry locations.
Specifications
| Brand Name | Priority Wire & Cable | Item Name | AC90 Cable |
| Type | Armored | Wire Gauge Size | 2 AWG |
| Number of Conductors | 3 | Stranded/Solid | Stranded |
| Conductor Material | Aluminum | Armor Material | Aluminum |
| Voltage Rating | 600 V | Number of Strands | 7 |
| Outside Diameter | 26.8 mm | Insulation Material | XLPE |
| Insulation Thickness | 1.02 mm | Amperage Rating | 100 A |
| Color Code | Black/Blue/Red | Weight | 1271 lb/km |
| Temperature Rating | -40 to 90 °C | Standards | ASTM B800/B801, CSA C22.1/C22.2 No. 51 and No. 174 |
| Application | For Open and Concealed Wiring in Dry Locations |
Packages
| 150 - UNIT - 150 |
