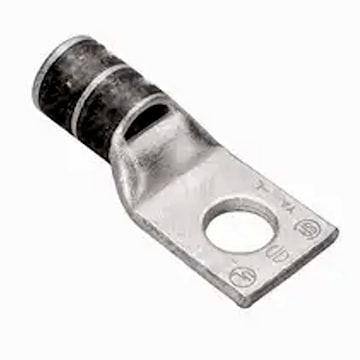

HUBBELL YAL28T38 3/8 inch #4/0 AWG Burndy Type YA-L 1-Hole Hylug Copper Compression Lug Short Barrel - Tin Plated
buryal28t38
HUBBELL YAL28T38 3/8 inch #4/0 AWG Burndy Type YA-L 1-Hole Hylug Copper Compression Lug Short Barrel - Tin Plated
Price
$17.21
/ EA
Inventory
Available for delivery
Available for pick up at
Abbotsford
Manufacturer:HUBBELL
Manufacturer #:YAL28T38
Description
Burndy Canada YAL28T38 Hylug Terminal Lug, Compression, Cable Size 4/0 AWG Stranded, 3/8 IN Stud, 1 Hole, 35 KV, Tin Plated Copper, Purple, 2 IN Length, Barrel Type 0.78 IN Length Chamfered Standard Short Barrel, Pad/Tongue Dimensions 1.02 IN Width X 0.14 IN Thickness, Straight Tongue, Die Index 15, UL468A-468B, CSA Certified, ROHS Compliant
Specifications
| Brand Name | Burndy | Sub Brand | Hylug™ |
| Item Name | 1-Hole Compression Terminal Lug | Type | Compression Terminal Lug |
| Conductor Size | 4/0 AWG | Number of Holes | 1 |
| Stud Size | 3/8 in | Color Code | Purple |
| Material | Copper | Voltage Rating | 35000 V |
| Finish | Tin Plated | UPC | 781810417096 |
Packages
| 1 - UNIT - 1 | 5 - UNIT - 5 | 10 - UNIT - 10 |
