taboapa350

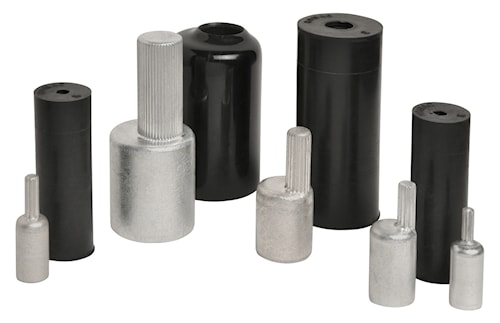

ABB OAPA-350 350kcmil Type OAPA Offset Pin Style Color-Coded Compression Connector
taboapa350
ABB OAPA-350 350kcmil Type OAPA Offset Pin Style Color-Coded Compression Connector
Price
$81.8362
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:ABB ELECTRIFICATION CANADA INC
Manufacturer #:OAPA-350
Description
Aluminum Solid Pin Terminals Offset Pin Style with Insulating EDPM Rubber Boot, Wire Size 350 kcmil, Overall Length 2.75 Inches (69.85mm), Tin Plated, Die Code 87, Brown.PRODUCT FEATURES:- Optimum design to allow a reliable termination of aluminum or copper- Easily transition large aluminum cables into mechanical lugs- Simplify installations in tight working spaces- Knurled pins provide a solid contact area to ensure low-resistance connection- Manufactured from high-conductivity aluminum alloy- Tin plated to eliminate the possibility of galvanic corrosion- Pre-filled with oxide inhibitor to ensure airtight termination- Kitted with an insulating boot to eliminate taping
Specifications
| Brand Name | ABB | Sub Brand | Blackburn® |
| Item Name | Solid Offset Pin Adapter with Insulating Boot | Type | Aluminum Pin Terminal |
| Conductor Size | 350 kcmil | Barrel Size | 1.10 in dia |
| Pin Diameter | 0.57 in | Pin Length | 1.34 in |
| Voltage Rating | 600 V | Material | Aluminum |
| Series | OAPA | Color Code | Brown |
| Insulation Material | EPDM | Dimensions | 1.3 in dia x 3-1/2 in L Boot |
| Overall Length | 2-3/4 in | Color | Brown |
| Standards | UL File Number E63167, CSA Certified | Application | Termination of Aluminum or Copper Conductors to Mechanical Lugs |
| UPC | 075114133784 |
Packages
| 1 - UNIT - 1 | 10 - UNIT - 10 | 100 - UNIT - (100) |
