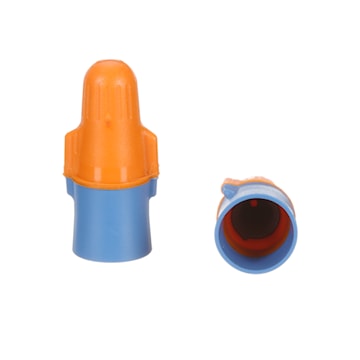

3M CANADA O/B JUG 22-12AWG 600V 3M™ Performance Plus Wire Connector 500 per Jug, Orange/Blue

Price $0.17 / EA
Inventory
Available for delivery
Unavailable for pick up Abbotsford
Qty EA
Manufacturer:3M CANADA
Manufacturer #:O/B-JUG

Description

The improved 3M O/B+ connector will help electricians do more with less. The O/B+ connector combines a very small shell with an increased wire range. The improved spring bites wire quickly with less effort and accommodates from two #22 AWG wires up to three #12 AWG wires or four #14 AWG wires. The very small shell fits easily into tight spaces and its flexible skirt helps protect workers from contact with overstripped wires. With such a wide wire range, you can save money by buying fewer connectors. O/B + replaces the orange, blue and grey spring connector style connectors, as well as 70% of the yellow spring connector and wing style connectors. This simplifies selection of the right connector for a wide range of wiring jobs.

Specifications

Brand Name 3M Item Name Twist-On Wire Connector
Type Rounded Wing, Flame-Retardant Voltage Rating 600/1000 V
Conductor Size 22-12 AWG Series/Model Performance Plus O/B+
Connection Type Wire Material Steel Spring
Color Blue/Orange Insulation Material Polypropylene and Thermoplastic Elastomer
Temperature Rating 221 °F Standards UL Listed, CSA, CE and IEC Certified
UPC 054007431534

Packages

2000 - UNIT - (2000)
