burk2a40u
HUBBELL 5/8 inch 300-800kcmil Burndy Type K2A-U Aluminum Universal Terminal
burk2a40u
HUBBELL 5/8 inch 300-800kcmil Burndy Type K2A-U Aluminum Universal Terminal
Price
$102.31
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:HUBBELL
Manufacturer #:K2A40U
Description

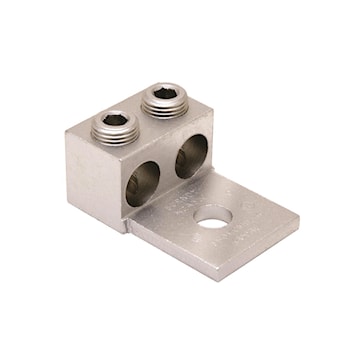

Aluminum Universal Terminal, 2 Conductor, 1 Hole, 300-800 kcmil, 5/8" Stud, 2 Screws, Al/Cu Rated, Tin Plated.
Specifications
| Brand Name | Burndy | Sub Brand | Burndy |
| Item Name | Mechanical Lug | Type | K2A-U, Universal, Dual-Rated |
| Conductor Type | Aluminum and Copper | Conductor Size | 300 - 800 kcmil |
| Number of Bolt Holes | 1 | Material | High Strength Aluminum Alloy |
| Number of Conductors | 2 | Bolt Size | 5/8 in |
| Tongue Size | 1.66 in L x 1/2 in T | Temperature Rating | 194 |
| Finish | Electro-Tin Plated | Dimensions | 3.38 in L x 3.19 in W x 1.94 in H |
| Standards | UL AL9CU Rated, CSA Certified, RoHS Compliant | Application | For Aluminum And Copper Conductors |
| UPC | 781810600252 |
Packages
| 1 - UNIT - 1 | 30 - UNIT - 30 |
