HOFA7236SOF19
HOFFMAN A7236SOF19 Frame rack mounting swing-out 19in mount
Description

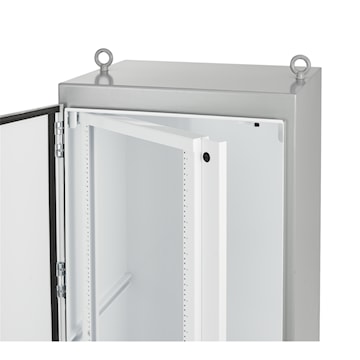

Full-length 10 gauge swing-out frame for rack mounting equipment. The frame pivots within the enclosure to allow access to the back of the mounted equipment. Mounting holes are tapped with #10 to 32 threads spaced per EIA standard. The design features smooth operation and secure positioning anywhere along the horizontal mounting channels. Frame swings from the left side. All frames are white and furnished with plated mounting hardware.
The Swing-Out Rack Mounting Frames have mounting holes tapped #10-32 thread and spaced per EIA 310-D standard
Plated mounting hardware is provided
Specifications
| Brand Name | Hoffman | Sub Brand | Hoffman |
| Type | Panels and Panel Accessories | Size | fits 72.06x36.06 in |
| Material | Steel | Color | White |
| Finish | Powder Coat | Application | Controls and Drives; Corrosive Environments; Power Distribution |
| UPC | 783510744106 |
Packages
| 1 - UNIT - 1 |
