HOFCCM04
HOFFMAN CCM04 BAYING KIT INTERNAL CORNER
Description

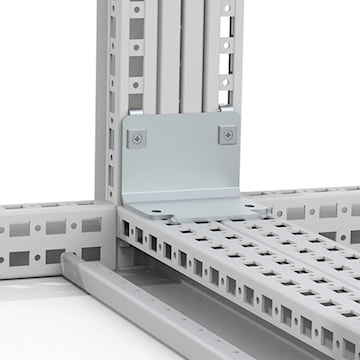

Internal Corner Baying Kit, CCM are used for extra support when bayed enclosures are fully equipped and require lifting. This Internal Corner Baying Kit, CCM, CCM04 item measures 74x85x79mm with a material of Zinc Plated, Mild Steel.
Description: For extra support when bayed enclosures are fully equipped and require lifting. Can be used together with SPD separation plates.
Material: 3 mm zinc plated steel.
Pack quantity: 4 brackets with mounting accessories.
Comment: These brackets should not be used in combination with a mounting plate if mounted on the side of the enclosure, or in combination with the mounting plate filler (MPF) unless the mounting plates are brought 50 mm forward
Specifications
| Brand Name | nVent Hoffman | Type | IEC Enclosure Accessories |
| Size | 2.9 x 3.35 x 3.11 inch | Material | Steel |
| Application | Controls and Drives; Factory Automation and Process Control | UPC | 783510456863 |
Packages
| 1 - UNIT - 1 |
