HOFPGH1S13

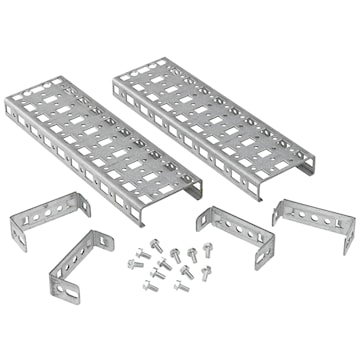

HOFFMAN PGH1S13 MODULAR ENCLOSURE GRID STRAP
Description
The Grid Straps are provided with specially designed rectangular holes to allow the use of cage nuts or front-loading cage nuts. Mounting holes are provided on 25-mm centers. Grid Straps are available with either 1 row or 3 rows of holes and are furnished in pairs. Mounting hardware to attach Grid Straps to the frame or to other Grid Straps is included.
Can be mounted vertically between horizontally mounted Grid Straps
Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame
Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame
When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)
Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
Specifications
| Brand Name | nVent Hoffman | Sub Brand | ProLine |
| Type | Internal Mounting for ProLine Industrial Enclosures | Length | 50.75 in |
| Material | Steel | Width | 5.50 in |
| Thickness | 1.9 mm | Application | Controls and Drives; Power Distribution |
| UPC | 783510905200 |
Packages
| 1 - UNIT - 1 |
