wag22021404

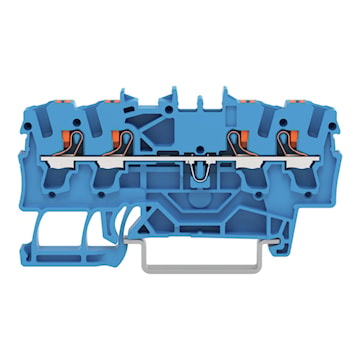

WAGO 24A 800V 4-Conductor 2202 Series Through Terminal Block, Blue
wag22021404
WAGO 24A 800V 4-Conductor 2202 Series Through Terminal Block, Blue
Price
$3.06
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:WAGO
Manufacturer #:2202-1404
Description
4-conductor through terminal block with push-button 2.5 mm² with test port suitable for Ex i applications side and center marking for DIN-rail 35 x 15 and 35 x 7.5 Push-in CAGE CLAMP® 2,50 mm², Blue.
Specifications
| Brand Name | Wago Corp | Item Name | Terminal Block with Push Button |
| Voltage Rating | 800 V | Amperage Rating | 24 A |
| Conductor Size | 22-12 AWG Solid/Stranded, 2.5 mm² | Mounting Type | 35 mm DIN Rail |
| Series | 2202 | Power Rating | 0.766 W |
| Wire Strip Length | 10 - 12 mm | Connection Type | Push-In Cage Clamp |
| Temperature Rating | -60 to 105 °C | Block Material | Polyamide |
| Color | Blue | Dimensions | 5.2 mm W x 39.5 mm D x 69.9 mm H |
| Standards | ATEX: PTB 18 ATEX 1005 U/IECEx: PTB 18.0012U (Ex eb IIC Gb), CCA EN 60947, CSA Certified, cURus Certified, NTR NL-7950 Approved, IEC/EN 60947-7-1, DIN EN 50155 (VDE 0115-200):2022-06, DIN EN 61373 (VDE 0115-0106):2011-04, RoHS Compliant, UL 1059, UL-CA-L45172-6189178-11508102-1 |
Packages
| 1 - UNIT - 1 |
