HOFPSC20610BAC
HOFFMAN PSC20610BAC PROLINE2000X600X1000ACY PKGBK
Description

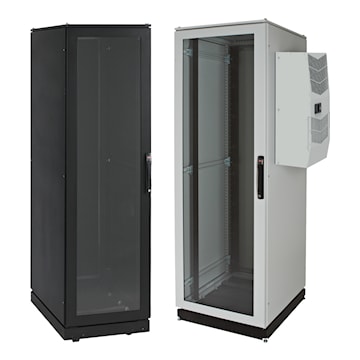

Proline Voice/Data cabinets are used for housing either A/V or server equipment in wet/hot environments. This ProLine V/D Server Cabinet with G28 Type 12, PSC20610BAC item measures 2000x600x1000mm with a material of Steel colored Black.
Fully gasketed to keep contaminants away from equipment, reducing maintenance costs
Three-point locking handles on all doors provide easy but controlled access; two keys included
Rack angles are infinitely adjustable from front to rear for positioning flexibility
Mobile base provides easy placement of cabinet
Levelers and anti-tip bracket secure cabinet to the floor
AC package has cutout for easy in-the-field installation of SpectraCool G-Series Air Conditioner (shipped separately)
Mobile base includes casters, levelers and gland plate
Gland plate allows easy routing of cable
Front window door made of 16 or 14 gauge steel with safety glass window
Solid 16 or 14 gauge steel back door
Specifications
| Brand Name | nVent Hoffman | Sub Brand | ProLine |
| Item Name | Server Cabinet | Type | Free-Stand, AC-Ready, Dust-Resistant |
| Width | 23.94 in | Depth | 39.34 in |
| Height | 82.1 in | NEMA Rating | NEMA 12 |
| Rack Units | 42 | Material | Steel |
| Finish | Powder Coated | Color | Black |
| Standards | EIA RS-310-D, UL 508A Listed, Type 12, File Number E61997, cUL Listed per CSA C22.2 No 94, Type 12, File Number E61997, NEMA/EEMAC, Type 12 | Application | Networking, Storage and Data Center, Indoor |
| UPC | 783510153380 |
Packages
| 1 - UNIT - 1 |
