HOFA72RA19TH
HOFFMAN A72RA19TH ANGLES 61.25IN LONG RACK M, 2
Description

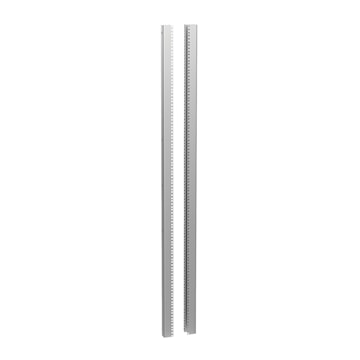

Rack mounting angles U style Type RA are designed for Free-Stand Enclosures with mounting channel. A pair of full-length rack mounting angles are available for mounting 19-in. (483-mm) and 24-in. (610-mm) rack-mounted equipment.
Type RA rack mounting angles have mounting holes .281 in. (7 mm) in diameter and spaced per EIA 310-D standard
Angles and mounting hardware are plated
All mounting hardware is furnished
Use clip nut package AN1032 to provide tapped holes at desired locations
Specifications
| Brand Name | nVent Hoffman | Sub Brand | Hoffman |
| Type | Mounting Accessories | Length | 65.50 in |
| Width | 5.50 in | Height | 5.00 in |
| Thickness | 1.9 mm | Material | Steel |
| Finish | Zinc | Application | Controls and Drives; Corrosive Environments; Power Distribution |
| UPC | 783510745608 |
Packages
| 1 - UNIT - 1 |
