INTWP1030C

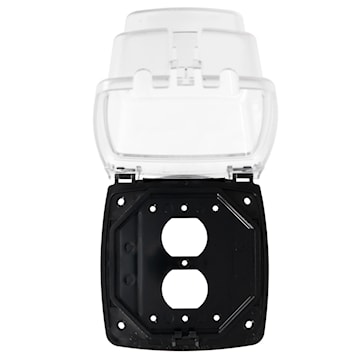

INTERMATIC 1 or 2-Gang 3 3/4 inch Cover Weatherproof with GRCI & Duplex Insert, Clear
Description
WP1000C Series plastic while-in-use cover is easy to install and shipped with a gasket, mounting screws, base and cover assembly and patented inserts for a variety of applications. Complies with 2008 NEC Article 406.8(B)(1). 3 patented inserts for GFCI, duplex, toggle or round receptacles. Two-gang models include 6 snap-together, rotating, inserts that create 70 combinations. Heavy-duty polycarbonate construction. Clear cover on most models. Pre-adhered gasket. Meets requirements for cold impact testing: -60°F (-51°C).
Complies with 2020 NEC Article 314.15 for damp and wet locations
UL Certified for Type 3R outdoor enclosures
Meets requirements for cold impact testing: -60° F (-51° C)
Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
1/8" (3 mm) thick neoprene gasket with slits for mounting screws
WP101 Duplex & WP102 GFCI single-gang application inserts included.
Inserts can be rotated to fit vertical or horizontal applications.
Fits standard square 4” wall boxes with single-gang applications.
Max cord size: (2) #14 AWG or (1) #12 AWG, WP1050 (2) #14 AWG or (1) #10 AWG
Warranty: 1-year limited
Specifications
| Brand Name | Intermatic | Item Name | Weatherproof Receptacle Cover with Hinged Lid |
| Type | Rectangular | Width | 5 in |
| Depth | 82.55 mm | Material | Heavy Duty Polycarbonate |
| Number of Gangs | 1, 2 | Number of Outlets | 2 |
| Color | Clear White | Finish | Untreated |
| Insulation Type | Neoprene Gasket | Mounting Type | Vertical, Screw |
| Enclosure Type | NEMA 3R | Application | Schools, Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage |
| UPC | 078275003231 |
Packages
| 1 - UNIT - 1 | 6 - UNIT - 6 |
