HOFMPF2200
HOFFMAN MPF2200 FILLER PLATE 2200
Description

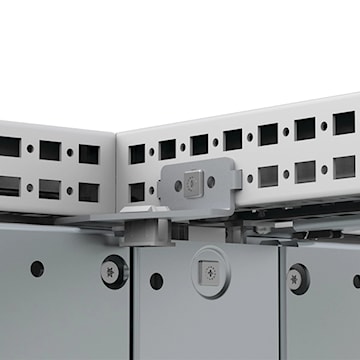

Filler Plates, MPF provide a flat mounting surface in bayed enclosures when mounting plate is not fitted flush to frame. This Filler Plates, MPF, MPF2200 item measures 2086x102x25mm with a material of Zinc Plated, Mild Steel.
Description: Covers the space between pairs of adjacent mounting plates to provide a continuous working surface, when two enclosures are mounted together.
Material: 2 mm zinc plated steel.
Pack quantity: 1 plate with mounting accessories.
Benefit: the available space for mounting components and equipment is increased allowing components to be mounted across the entire width of the enclosure; the continuous mounting surface allows customers to mount components between the two enclosures, en
Comment: the mounting plates within the enclosure assembly cannot be mounted in the most rear position, if the filler plate is to be fixed between them
Specifications
| Brand Name | nVent Hoffman | Length | 86.99 in |
| Width | 12.00 in | Height | 8.00 in |
| Material | Steel | Type | IEC Enclosure Accessories |
| Color | Unpainted | Finish | Zinc |
| Application | Factory Automation and Process Control; Controls and Drives | UPC | 783510512378 |
Packages
| 1 - UNIT - 1 |
