HOFP2DDL2010

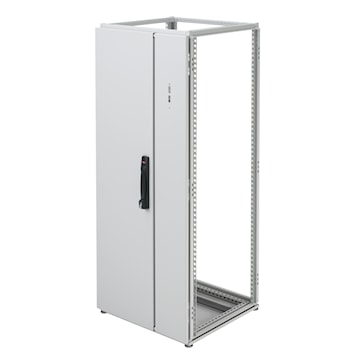

HOFFMAN P2DDL2010 Disconnect door 1 door left mullion standard 2000x1000mm
Description
PROLINE G2 Disconnect Doors include a hinged mullion with a cutout which accommodates a wide variety of flange-mount disconnect devices, and an interlock system from the enclosure doors to the disconnect mullion. A hinged disconnect mullion provides unobstructed access to the interior and maximum access to the Full Mounting Subpanel (Mounting Plate). Interlock from enclosure doors to mullion. Includes a hinged mullion with a cutout, which accommodates a wide variety of flange-mount disconnect devices. Standard options: right standard cutout, right large cutout, left standard cutout. Mullion is opened via two quarter-turn cams. Polyester powder paint; RAL 7035 textured light gray standard.
Interlock from enclosure doors to mullion
Includes a hinged mullion with a cutout, which accommodates a wide variety of flange-mount disconnect devices
Standard options: right standard cutout, right large cutout, left standard cutout
Mullion is opened via two quarter-turn cams
Integrated interlock system from the doors to the disconnect mullion
Interlock must be defeated to unlock either door
The primary door must be in the open position to open the secondary door
The primary door must be in the open position to open mullion
Right-hand disconnects have the mullion on the right; left-hand disconnects have the mullion on the left
Doors swing to the left for right-hand disconnects; doors swing to the right for left-hand disconnects
Specifications
| Brand Name | nVent Hoffman | Material | Steel |
| Type | Left Mullion | Application | Arc Flash Safety; Controls and Drives |
| UPC | 783510314057 |
Packages
| 1 - UNIT - 1 |
