HOFP2PD2016G

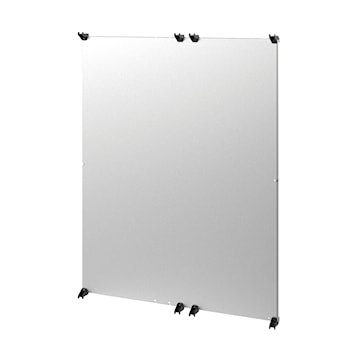

HOFFMAN P2PD2016G Subpanel full disconnect mounting 2000x1600mm
Description
PROLINE G2 Disconnect Components are used with PROLINE G2 disconnect frames and doors to configure a custom disconnect enclosure solution for widths 1000 mm wide. These components are identical to the standard PROLINE G2 components (i.e. PROLINE G2 Solid Tops, Gland Plates, Mounting Subpanel) with the exception that the center support is offset 100mm (to accommodate the hinged mullion).
Disconnect specific mounting subpanels are required for frames greater than 1000mm in width; any width 1000mm or less uses a standard mounting subpanel
10 gauge (3.0 mm) mild steel; conductive plated option only
Includes eight sets of EZ-Load Glide Blocks, BV-M6 and Hex Bolts for securing
Similar in construction and function to the standard mounting subpanel, but with 100mm offset mounting holes near the middle of the subpanel, due to the presence of the disconnect mullion door in the enclosure solution
Disconnect mounting subpanel comes standard with Disconnect Package
Specifications
| Brand Name | Hoffman | Type | Non-Reversing |
| Height | 3.50 in | Width | 62.50 in |
| Material | Steel | Finish | Galvanized |
| Application | For Arc Flash Safety, Controls and Drives | UPC | 783510324773 |
Packages
| 1 - UNIT - 1 |
