HOFA10AXFN
HOFFMAN A10AXFN Hoffman Axial Fan Compact 951 m³/h Aluminum/Black
Description

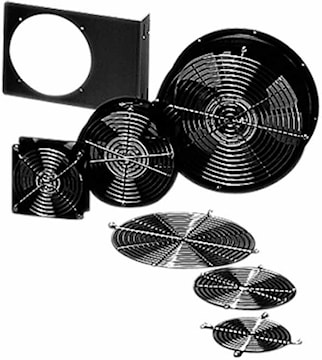

Compact axial fan, 10 inch, They have ball-bearing construction and split-capacitor motors are thermally protected to avoid premature failure, All mounting hardware is provided, One finger guard is furnished.
Maximum operating temperature is 158 F (70 C)
4-inch fan is thermally protected and uses permanently lubricated ball bearings
6- and 10-inch fans have ball-bearing construction and split-capacitor motors
Split-capacitor motors are thermally protected to avoid premature failure
Dynamically balanced impellers molded from polycarbonate material
One finger guard is furnished (additional finger guards are available)
All mounting hardware is provided
240 and 560 CFM fans have ball bearing construction and split capacitor motors
Fans have leadwires with ends stripped 1/2-inch (12-mm) or 6-foot (1.8-m) cord with polarized plug for power connections
Fan bracket and additional finger guards must be purchased separately
Specifications
| Brand Name | nVent Hoffman | Sub Brand | Hoffman |
| Item Name | Axial Fan | Type | Compact |
| Flow Rate | 951 m³/h | Power Rating | 36 W |
| Voltage Rating | 115 VAC | Amperage Rating | 1/0.88 A |
| Frequency Rating | 50/60 Hz | Motor Type | AC |
| Color/Finish | Aluminum/Black | Overall Height | 254 mm |
| Standards | UL Listed, CSA Certified | Application | Controls and Drives; Power Distribution |
| UPC | 783510222307 |
Packages
| 1 - UNIT - 1 |
