HOFAMHUM

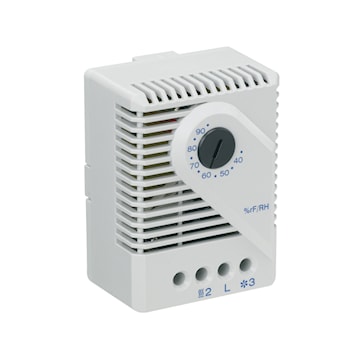

HOFFMAN AMHUM Hygrostat mechanical plastic gry 2.64x1.97x1.5in
Description
Mechanical hygrostat with adjustable relative humidity range. High switching capacity. Long service life (100,000 cycles). Maximum permissible air velocity of 50 ft./sec. (15 m/s). Contact resistance less than 10 mohm.
Adjustable relative humidity range
High switching capacity
Long service life (<gt/>100,000 cycles)
Maximum permissible air velocity of 50 feet/sec. (15 m/s)
Maximum switching voltage = 250 VAC 250 V should be switched only in a non-condensing environment
Change-over contact
Mounting clip for 35-mm DIN rail
Connection is a 3-pole terminal for AWG 14 max. (2.5-mm squared)
Contact resistance less than 10 mΩ
Specifications
| Brand Name | nVent Hoffman | Sub Brand | Hoffman |
| Item Name | Mechanical Hygrostat | Type | Cooling Accessories |
| Switch Action | 1 CO | Voltage Rating | 200 - 250 VAC |
| Amperage Rating | 5 A | Humidity Range | 65% |
| Mounting Type | DIN Rail | Color | Gray |
| Dimensions | 2.64 x 1.97 x 1-1/2 in | Standards | CE Certified |
| Application | For Controls and Drives, Power Distribution | UPC | 783510164485 |
Packages
| 1 - UNIT - 1 |
