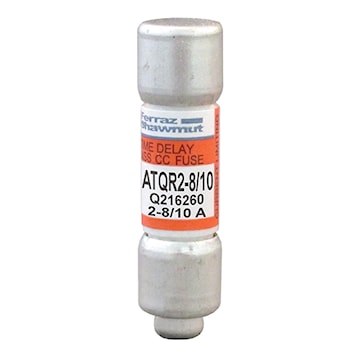

MERSEN ATQR2-8/10 2-8/10A 600V Mersen Amp-Trap 2000® ATQR Series Class CC Time-Delay Fuse

Price $14.41 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
Qty EA
Manufacturer:MERSEN
Manufacturer #:ATQR2-8/10

Description

AMP-TRAP 2000® Time delay fuse for control transformer inrush loads without nuisance opening. Highly current-limiting for low peak let-thru current. Rejection-style design prevents replacement errors (when used with recommended fuse blocks). High visibility orange label ensures instant brand recognition and simplifies replacement. Metal-embossed date and catalog number for traceability and lasting identification. Fiberglass body provides dimensional stability in harsh industrial settings. High-grade silica filler ensures fast arc quenching and high current limitation.

Specifications

Brand Name Ferraz Shawmut Sub Brand Amp-Trap® 2000
Item Name Current Limiting Fuse Type Time-Delay
Series ATQR Voltage Rating 600 VAC, 300 VDC
Amperage Rating 2.8 A Interrupt Rating 200 kA at AC, 100 kA at DC
Fuse Class Class CC Body Style Cylindrical, Rejection
Mounting Type Clip Terminal Connection Ferrule
Contact Material Tin Plated Copper Construction Fiberglass
Dimensions 10 mm dia x 38 mm L Standards UL 2484, CSA File Number E2137, CSA C22.2 No. 248.4, RoHS Compliant
Application For Control Transformers, Solenoids, Inductive Loads, Lighting, Heaters, General Purpose Loads UPC 782001906528

Packages

10 - UNIT - (10)
