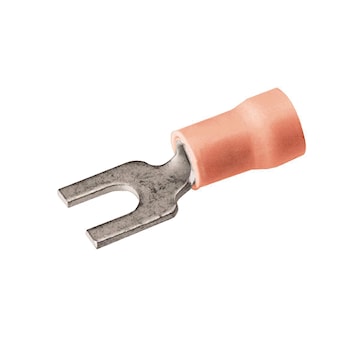

BURNDY BA16EF6 600V 22-16AWG #4-#6 Stud Copper Terminal Fork Tongue, Red

Price $0.62 / EA
Available for backorder
Unavailable for pick up Abbotsford
Qty EA
Manufacturer #:BA16EF6


Copper Terminal, Fork Tongue, 22-16 AWG, #4-#6 Stud, Vinyl Insulated.Features: Fork Tongue Design: Faster Installation-Screw Needs Only To Be Loosened For Termination, 600 V Maximum, 105 DEG C Maximum, Insulation Diameter (maximum): 0.145 IN, Package: Bulk, Installation Tool: Plier Type: Y10-22 Tool, Ratchet: MR8-89-1 Tool, Wire Strip Length: 13/64 IN, Color Code: Red, Finish: Electro-Tin Plated, Temperature Rating: 105 DEG C Maximum, Wire Insulation Grip: No.


Brand Name Burndy Sub Brand Vinylug™
Item Name Fork Terminal Type Insulated, Short Sleeve
Conductor Size 22-16 AWG Stranded Stud Size 0.112 - 0.138 in
Voltage Rating 600 V Insulation Material PVC
Material Copper Finish Tin-Plated
Color Red Series BA-EF
Insulation Diameter 0.145 in Temperature Rating 105 °C
Wire Strip Length 13/64 in Length 0.80 in
Width .25 in Standards UL 467 Listed
Application For Commercial and Light Duty Industrial Control and Power Circuit Applications UPC 781810026748


1000 - UNIT - (1000)
