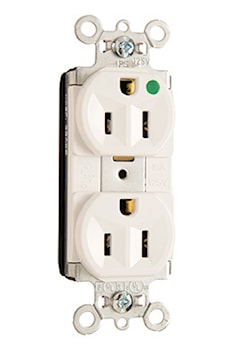

PASS & SEYMOUR PT8200HW 15Amp 125V NEMA 5-15R PlugTail Heavy-Duty Compact Design Hospital-Grade Duplex Receptacle, White

Price $22.44 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
  • Solutions
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:PASS & SEYMOUR
Manufacturer #:PT8200HW
PASS & SEYMOUR logo
Documents Documents

Description

Factory-terminated devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each hospital-grade receptacle. The connector simply snaps into the back of the device—no fussing with wires, stripping or tightening screws. PlugTail devices are finger safe with no exposed terminals, so taping is not required. Now installation is a snap! PlugTail.The toughest and safest hospital-grade receptacles available.


Plated steel wrap-around strap design for maximum durability and corrosion resistance.

No exposed terminals create a fingersafe application before, during, and after installation.

Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.

Impact-resistant nylon face.

Specifications

Brand Name Pass & Seymour Sub Brand PlugTail®
Item Name Receptacle Type Duplex, Heavy Duty
Grade Hospital Voltage Rating 125 V
Amperage Rating 15 A Number of Poles 2
Number of Wires 3 NEMA Rating 5-15R
Material Nylon Face, PVC Body Color White
Dielectric Strength 2000 V Contact Material 0.036 in T Brass
Dimensions 1-1/2 in W x 5/8 in D x 3.281 in H Temperature Rating 60 °C Maximum Continuous, -40 °C Minimum without Impact
Environmental Conditions UL 94 Requirements, V2 Rated Flammability Standards CSA C22.2 No. 42 Certified, cUL E140596, UL E140596 Listed, RoHS Compliant
Application Commercial,Healthcare UPC 785007091373

Packages

1 - UNIT - 1 10 - UNIT - 10 100 - UNIT - 100 4400 - SKID - 4400
