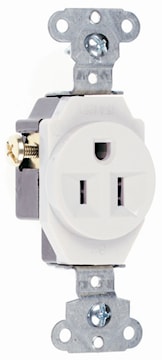

PASS & SEYMOUR 5251-W 15Amp 125V 2-Pole/3-Wire NEMA 5-15R Heavy-Duty Spec Grade Single Receptacle - Side Wire, White

Price $18.96 / EA
Inventory
Available for delivery
Available for pick up at Abbotsford
  • Kelowna
  • Edmonton Express
  • Red Deer Express
  • Calgary
  • Estevan
  • Fort McMurray
  • Airdrie
  • Langford Express
  • Coquitlam
  • Nisku
  • Squamish
  • Chilliwack
  • Nanaimo
  • Thunder Bay
  • Victoria
  • Vancouver Express
  • Lethbridge
  • Saskatoon
  • Trail
  • Humboldt
  • Abbotsford
  • Surrey
  • LANGLEY
  • Winnipeg
  • Burnaby
  • Penticton
  • PLC Automation
  • Regina
  • N. Vancouver Express
  • Whistler Express
Qty EA
Manufacturer:PASS & SEYMOUR
Manufacturer #:5251W
PASS & SEYMOUR logo
Documents Documents

Description

Heavy-Duty Spec Grade Single Receptacle, Side Wire 15amp 125volt.FEATURES AND BENEFITS:• Auto-ground clip assures positive ground.• Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.• Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.• Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.• One-piece brass triple-wire power contacts for lasting retention.

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Straight Blade Single Receptacle Type Non-Reversing
Grade Residential/Commercial Size 3.3 in
Voltage Rating 125 V Amperage Rating 15 A
Number of Poles 2 Number of Wires 3
Connection Type Wire Ground, Side Wire NEMA Rating 5-15R
Conductor Size 4 AWG Material Thermoplastic
Color White Finish Untreated, Gloss
Terminal Connection Screw Dimensions 3.3 in
Mounting Type Wall, Flush Standards UL 498
Application Commercial,Residential UPC 785007525151

Packages

1 - UNIT - 1 10 - UNIT - 10 100 - UNIT - 100
