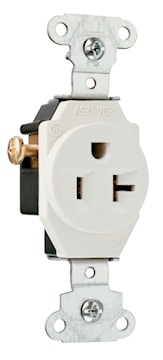

PASS & SEYMOUR 5351LA 20Amp 125V 2-Pole/3-Wire NEMA 5-20R Heavy-Duty Spec Grade Single Receptacle - Side Wire, Light Almond

Price $36.03 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
  • Solutions
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:PASS & SEYMOUR
Manufacturer #:5351LA
PASS & SEYMOUR logo
Documents Documents

Description

Heavy-Duty Spec Grade Single Receptacle Side Wire 20amp 125volt.FEATURES AND BENEFITS:• RoHS Compliant• Auto-ground clip assures positive ground.• Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.• Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.• Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate side wire capability.• One-piece brass triple-wire power contacts for lasting retention.


Auto-ground clip assures positive ground.

Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle.

Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.

Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate side wire capability.

One-piece brass triple-wire power contacts for lasting retention.

For covering patents, see www.legrand.us/patents.

Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Straight Blade Single Receptacle Type Single Receptacles
Grade Residential/Commercial Size 3.3 in
Voltage Rating 125 V Amperage Rating 20 A
Number of Poles 2 Number of Wires 3
NEMA Configuration 5-20R Connection Type Side Wired
NEMA Rating 5-20R Conductor Size 4 AWG
Material Thermoplastic Color Light Almond
Dimensions 3.3 in H Mounting Type Wall
Standards UL 498 Application Residential/Commercial
UPC 785007535136

Packages

1 - UNIT - 1 10 - UNIT - 10 100 - UNIT - 100 4400 - SKID - 4400
