PAS5671

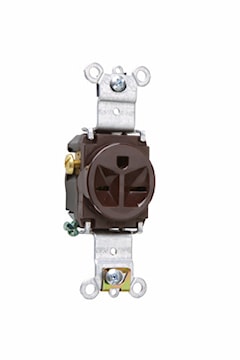

PASS & SEYMOUR 5671 15Amp 250V NEMA 6-15R Heavy-Duty Spec Grade Single Receptacle - Back & Side Wire, Brown
Description
15Amp 250V Heavy-Duty Spec Grade Single Receptacle - Back & Side Wire, BrownFEATURES AND BENEFITS:• RoHS Compliant• Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.• One-piece brass, triple-wipe power contacts for lasting retention.• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.• Impact-resistant nylon face and thermoplastic back body.• Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.• Terminal compartments isolated from each other for positive conductor containment.• Tri-drive terminal and mounting screws.• Auto-ground clip assures positive ground.
Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
One-piece brass, triple-wipe power contacts for lasting retention.
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
Impact-resistant nylon face and thermoplastic back body.
Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
Terminal compartments isolated from each other for positive conductor containment.
Tri-drive terminal and mounting screws.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Single Receptacle | Type | Heavy Duty |
| Grade | Specification | Size | 1.32 L x 1.093 W x 3.68 H In |
| Voltage Rating | 250 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wire | NEMA Rating | 6-15R |
| Conductor Size | 14-10 AWG | Material | Nylon |
| Color | Brown | Finish | Untreated, Gloss |
| Frequency Rating | 50/60 Hz | Terminal Connection | Screw |
| Dielectric Strength | 2000 V | Dimensions | 33.528 mm W x 27.432 mm D x 83.312 mm H |
| Mounting Type | Wall, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | UL 498, CSA C22.2 No. 42 |
| Application | Commercial Grade | UPC | 785007548921 |
Packages
| 1 - UNIT - 1 | 10 - UNIT - 10 | 100 - UNIT - 100 | 4400 - SKID - 4400 |
