PAS5851W

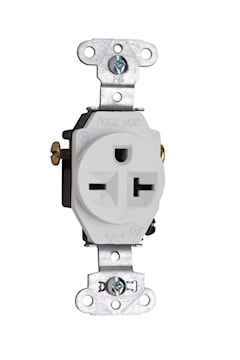

PASS & SEYMOUR 5851-W 20Amp 250V 2-Pole/3-Wire NEMA 6-20R Heavy-Duty Spec Grade Single Receptacle – Side Wire, White
Description
20Amp 250V 2-Pole/3-Wire Heavy-Duty Spec Grade Single Receptacle – Side Wire. FEATURES AND BENEFITS:• Auto-ground clip assures positive ground.• Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.• Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.• Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.• One-piece brass triple-wire power contacts for lasting retention.
Auto-ground clip assures positive ground.
One-piece brass, triple-wipe power contacts for lasting retention.
Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
One-piece brass triple-wire power contacts for lasting retention.
For covering patents, see www.legrand.us/patents.
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Single Receptacle | Type | Non-Reversing |
| Grade | Residential/Commercial | Size | 3.3 in |
| Voltage Rating | 250 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Wire Ground, Side Wire | NEMA Rating | 6-20R |
| Conductor Size | 4 AWG | Material | Thermoplastic |
| Color | White | Finish | Untreated, Gloss |
| Frequency Rating | 50/60 Hz | Terminal Connection | Screw |
| Dimensions | 33.528 mm W x 27.432 mm D x 83.312 mm H | Mounting Type | Wall, Flush |
| Standards | UL 498 | Application | Commercial |
| UPC | 785007585124 |
Packages
| 1 - UNIT - 1 | 10 - UNIT - 10 | 100 - UNIT - 100 |
