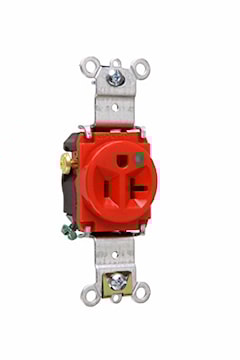

PASS & SEYMOUR 8301RED 20Amp 125V Heavy-Duty Hospital Grade Single Receptacle - Back & Side Wire, Red

Price $64.04 / EA
Available for backorder
Unavailable for pick up Abbotsford
Qty EA
Manufacturer:PASS & SEYMOUR
Manufacturer #:8301RED


20Amp 125V Heavy-Duty Hospital Grade Single Receptacle - Back & Side Wire.FEATURES AND BENEFITS: • RoHS Compliant • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. • One-piece brass, triple-wipe power contacts for lasting retention. • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. • Impact-resistant nylon face and thermoplastic back body. • Internal screw-pressure-plate back wire capable of accepting #14 – #10 AWG solid or stranded copper or copper-clad wire. • Terminal compartments isolated from each other for positive conductor containment. • Tri-drive terminal and mounting screws. • Auto-ground clip assures positive ground.


Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Straight Blade Single Receptacle Type Heavy-Duty
Grade Hospital Size 1.32 L x 1.093 W x 3.68 H In
Voltage Rating 125 V Amperage Rating 20 A
Number of Poles 2 Number of Wires 3
NEMA Configuration 5-20R Connection Type Back and Side Wired
NEMA Rating 5-20R Conductor Size 14-10 AWG
Material Nylon Color Red
Finish Matte Terminal Connection Pressure Screw
Dielectric Strength 2000 V Contact Material Brass
Dimensions 1.32 in L x 1.093 in W x 3.68 H Mounting Type Wall
Temperature Rating -40 °C Standards CSA C22.2 No. 42, cUL Listed, Federal Specification, UL 498 Listed
Application For Commercial Applications UPC 785007830392


1 - UNIT - 1 10 - UNIT - 10 100 - UNIT - 100 4400 - SKID - 4400
