PASTR5362ISP

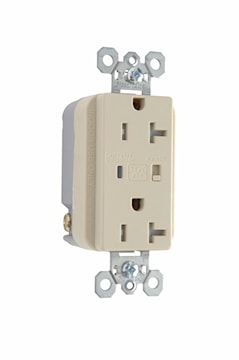

PASS & SEYMOUR TR5362ISP 20Amp 125V Tamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle, Ivory
Description
Tamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 20amp 125volt, Ivory.
Dual mechanical shutter system to help prevent insertions of foreign objects.
AC receptacles available in 15 and 20 Amp, 125V
.032 inch thick brass triple-wipe power contacts for lasting retention.
Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Surge Protective Duplex Outlet | Type | Tamper-Resistant, Extra Heavy Duty |
| Grade | Specification | Size | 1-3/4 in W x 0.94 in D x 3.82 in H |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Back Wire,Side Wire |
| Material | Thermoplastic | Color | Ivory |
| Frequency Rating | 60 Hz | Phase | 1 |
| Mounting Type | Box | Temperature Rating | -20 °C to 55 °C |
| Application | For Residential, Commercial Use | UPC | 785007020281 |
Packages
| 1 - UNIT - 1 | 10 - UNIT - 10 |
