BURYA44

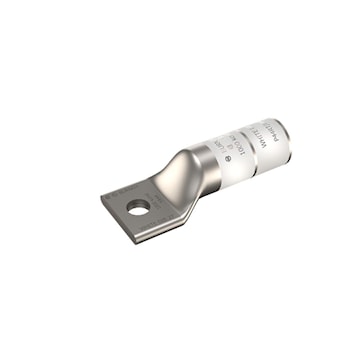

HUBBELL YA44 Hylug™ Compression Lug without Inspection Window 1 Holes Copper 1000 kcmil Stranded Copper 5/8 in Stud size
Description
Copper Compression Lug, 1 Hole w/o Inspection Window, 1000 kcmil, 5/8" Stud, Long Barrel, Electro Tin Plated.
Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color
Specifications
| Brand Name | Burndy | Sub Brand | Hylug™ |
| Item Name | Compression Lug without Inspection Window | Type | YA-2N |
| Conductor Size | 1000 kcmil Stranded Copper | Number of Holes | 1 |
| Stud Size | 5/8 in | Barrel Diameter | 1-1/2 in |
| Barrel Length | 3 in | Tongue Size | 1.33 in L x 2.19 in W x 0.33 in T |
| Overall Length | 5.45 in | Color Code | White |
| Material | Copper | Voltage Rating | 600 - 35000 V |
| Barrel Type | Long, Chamfered | Tongue Type | Standard, Straight |
| Die Code | 27 | Strip Length | 3-1/16 in |
| Finish | Electro Tin Plated | Temperature Rating | 90 °C |
| For Use With | Code Conductor | Standards | UL 486A-486B Listed, CSA Certified, RoHS Compliant |
| Application | For Code Conductor | UPC | 781810522950 |
Packages
| 1 - UNIT - 1 |
