BURYAV2CLTC38FX45

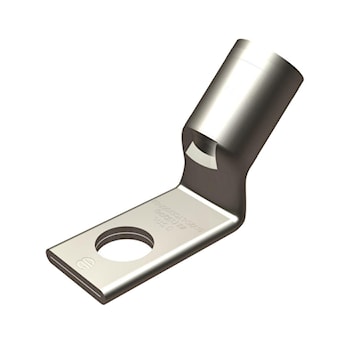

HUBBELL 2 AWG 3/8 inch Stud 1-Hole Compression Terminal
Description
Cu Tubing Hylug, 1 Hole with Inspection Window, #2 WELD, 3(125/#24)-2(150/#24) DLO, #2 AWG Code, 60 Navy, 600V-35kV, 3/8" stud, Compression, 0.40 in BCD.
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instructions
Specifications
| Brand Name | Burndy | Sub Brand | Hylug™ |
| Type | Standard Barrel, Tin Plated | Conductor Size | 2 AWG |
| Overall Length | 1.77 in | Material | Copper |
| Voltage Rating | 35,000 V | Finish | Tin-Plated |
| Standards | UL Listed, CSA Certified, RoHS Compatible | Application | For Flex Conductor |
| UPC | 781810022450 |
Packages
| 1 - UNIT - 1 |
