pandnf18206c

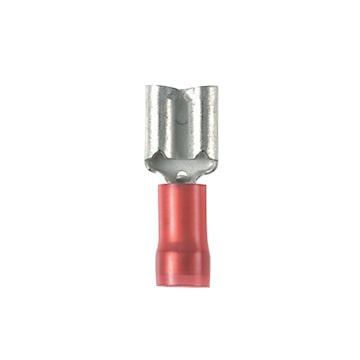

PANDUIT DNF18-206-C Pan-Term® DNF18-206-C Loose Piece Disconnect
pandnf18206c
PANDUIT DNF18-206-C Pan-Term® DNF18-206-C Loose Piece Disconnect
Price
$1.5095
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:PANDUIT
Manufacturer #:DNF18-206-C
Description
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.205/0.187 x 0.020" (5.2/4.7 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.76" (19.3 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Term® |
| Type | Disconnect | Width | 0.25 in |
| Voltage Rating | 300 V | Material | Brass |
| Finish | Tinned | Length | .76 in |
| Color | Red | Barrel Type | Insulation Grip Sleeve |
| Temperature Rating | 194 F | Standards | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983826421 |
Packages
| 100 - UNIT - (100) |
