HOFMCS22106R53R
HOFFMAN MCS22106R53R FLOOR-STAND MCS ENC 3R
Description

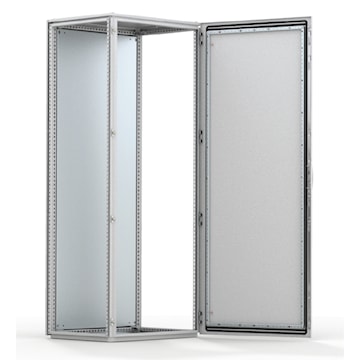

Single-door, combinable, floor-standing enclosure range, MCS, with IP 32/Type 3R rating. This Modular Single Door Type 3R, MCS-3R, MCS22106R53R item measures 2200x1000x600mm with a material of Mild Steel colored Light Gray.
Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660 Including integrated external hole pattern
Door: Mounted with four hinges allowing left or right hand opening; including door frame with 25 mm hole pattern
Rear panel: Fitted by M6 torx screws; standard facilities for rear door mounting
Supplied as an accessory
Removable roof panel
Lock: Espagnolette 4-point locking system which does not interfere with the enclosure inner space; standard double-bit lock with 3 mm insert
Bottom plate: Consists of three or four (D<gt/>600) pieces
Mounting plate: Double folded and slides into position with adjustable depths of 25 mm, with the MPD02 accessory
Earthing/Grounding: All panels are earthed through their fittings and are equipped with a separate earthing stud
Mounting requirements: Standard delivery ready for combined installation; for stand-alone installation add side panels
Packages
| 1 - UNIT - 1 |
