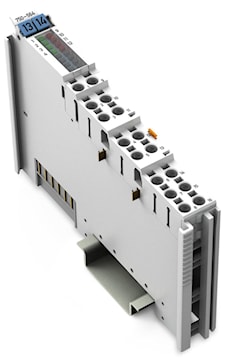

WAGO 4-Channel Analog Output, Light Gray
Description
4-channel analog output; Voltage/Current. The analog output module provides a variety of standardized signals for voltage and current. The output signal can be parameterized channel by channel. The output signal is electrically isolated and transmitted with a resolution of 16 bits. Both the internal system and field side supply power the module. Wire break, overload and insufficient field supply, are diagnosed and displayed.
Specifications
Brand Name | Wago Corp | Item Name | I/O Module |
Type | Analog | Voltage Rating | 24 VDC |
Output | 4-Channel | Dimensions | 0.472 in W x 2.717 in D x 3.937 in H |
Series/Model | 750 | Amperage Rating | 55 mA |
Resolution | 16 Bit | Connection | (16) Push-In Cage Clamp |
Material | Polycarbonate/Polyamide | Color/Finish | Dark Gray |
Mounting Type | 35 mm DIN Rail | Degree of Protection | IP20 |
Temperature Rating | 0 - 55 °C | Environmental Conditions | 95% Relative Humidity, -40 to 85 °C Temperature |
Standards | CE Certified, CAS-No. 1303-86-2, 1317-36-8, 7439-92-1, UL E175199 Listed |
Packages
1 - UNIT - 1 |
