ONQAC1058

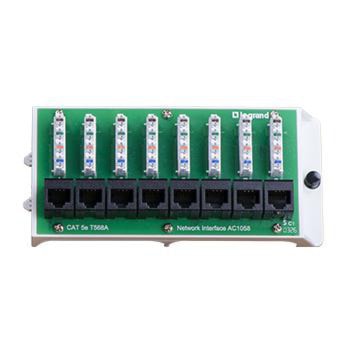

PASS & SEYMOUR AC1058 8-Port Cat5e Network Interface Module
Description
The 8-Port Cat5e Network Interface Module is designed to connect your Router / Switch to wired networking locations throughout the home. Eight front-mounted 110-IDC punchdown terminals and RJ-45 connectors allow for easy configuration of the home network with patch panel simplicity. The network interface module is UL listed and exceeds TIA/EIA 568-C.2 industry standards.
Provides vented stable surface to secure heavy or tall 3rd party devices within enclosure
Provides connectivity for ethernet connected devices like computers, TV's, gaming systems and network streaming devices
Easy access to front mounted 110-IDC Punchdown terminals and RJ45 Jacks
Module mounts in all On-Q structured wiring enclosures
Supports termination using T568A wiring standard, is UL listed and exceeds TIA/EIA 568-C.2 industry standards
Specifications
| Brand Name | On-Q | Sub Brand | On-Q |
| Item Name | Network Interface Module | Number of Ports | 8 |
| Port Type | RJ45 and 110 IDC Punchdown | Cable Type | Category 5E |
| Material | Metal Bracket | Color | Black/Green |
| Dimensions | 2.9 in W x 1.5 in D x 6.41 in H | Mounting Type | Tabs/Plungers and Grommets |
| Temperature Rating | 0 - 50 °C | Standards | UL Listed, CAN/CSA C22.2 No. 182.4 Certified, RoHS Compliant, TIA/EIA 568-C.2 |
| Application | Provides Connectivity for Ethernet Connected Devices like Computers, TV's, Gaming Systems and Network Streaming Devices | UPC | 804428432685 |
Packages
| 1 - UNIT - 1 | 12 - UNIT - 12 |
