HOFP2AGBHK

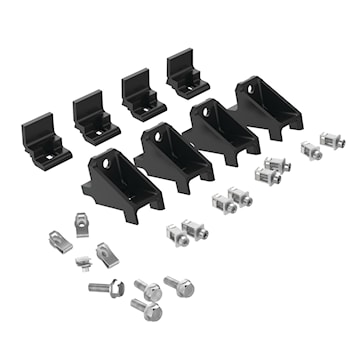

HOFFMAN P2AGBHK GLIDE BLOCK HARDWARE KIT
Description
A complete set of ProLine G2 EZ-Load Glide Blocks are included with every ProLine G2 Full Mounting Subpanel and ProLine G2 Industrial Packages. This set of four additional blocks can be used if a replacement set is needed.
A complete set of EZ-Load Glide Blocks is supplied with each full-height mounting subpanel; this set of four blocks serves as a replacement set
Support subpanel installation vertically from the front, rear, or side, or can be used to load a subpanel while the subpanel is horizontal
Glide blocks made from a high performing, glass re-enforced polymer, and consist of integrating front and rear sections
All mounting hardware included; glide blocks secure to frame with BV-M6 fasteners, and to the subpanel with metric hex bolts
For vertical front loading, the rear portion of the glide blocks can be attached to the frame prior to subpanel insertion to set a defined panel depth; the front portion of the glide blocks use the frame rails as a guide, gliding smoothly to the preferred
For horizontal loading, the frame can be lowered over the mounting subpanel; in this configuration the load of the subpanel is in a safe, static state
If the subpanel is used in the rear most position, the rear glide blocks will not be used, as the frame supports the subpanel
If two subpanels are used in the enclosure in a back-to-back position the rear glide blocks will not be used
Made from a high performing glass re-enforced polymer
Attaches to the frame using BV-M6 fasteners; attaches to the subpanel using hex bolts.
Specifications
| Brand Name | nVent Hoffman | Material | Glass Fiber Reinforced Polymer |
| UPC | 783510340735 |
Packages
| 1 - UNIT - 1 |
