HOFEGVM3
HOFFMAN EGVM3 COMLINE VERT MT GLAND T20
Description
ComLine Cabinets protect vertically mounted 19in rack equipment in telecommunications applications. This ComLine Vertical Mount Cabinet T20 AC, EGVM3 item measures 23.23x12.68x0.35in. with a material of Aluminum colored Lt Gray.
Vertically oriented 19-inch equipment mounting creates a compact, wind-resistant cabinet
Integral solar shield reduces solar heat load

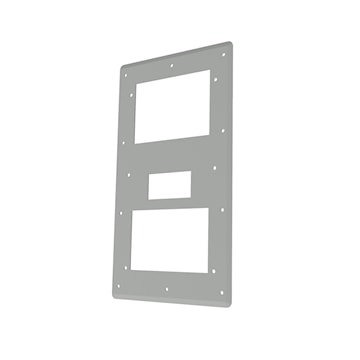

Right-side, solid gland plate can be removed and modified as needed
6 RU Rack has square hole spacing per EIA universal standards; order cage nuts separately
Quarter-turn, multi-point, vault-style latching system increases protection and security
160-degree door opening with quick-release, retained hinge pins
Body and door ground studs for bonding and grounding
Foam-in-place seamless gasket for superior protection against dust and liquid ingress
Back is prepared with mounting provisions for standard panels
Mounts to poles or walls
Specifications
| Brand Name | nVent Hoffman | Sub Brand | ComLine |
| Type | Data Networking Freestanding Cabinets | Width | 12.68 in |
| Depth | 0.35 in | Height | 1.50 in |
| Material | Aluminum | Finish | Lt Gray |
| Color | Lt Gray | Standards | UL 508A Listed, Type 3, 3R, 4, 4X, 12, File No. E61997, CSA: Type 3, 3R, 4, 4X, 12, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, EC60529, IP66, Designed to meet Telcordia NEBS™ GR-487, GR-63 and IEC 48D, EIA 310-D with 19-in. spacing for rack equipment, Cabinet is R |
| Application | Datacom and Telecom Equipment | UPC | 783510211561 |
Packages
| 1 - UNIT - 1 |
