HOFCCEH06

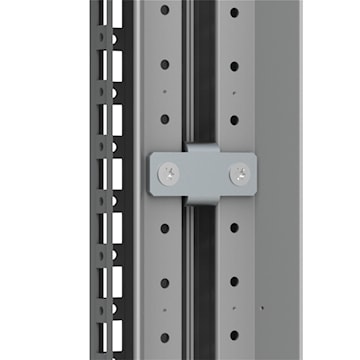

HOFFMAN CCEH06 SHORT EXTERNAL BAYING KIT
Description
Short External Baying Brackets, CCEH join partial-door enclosures with proper alignment without reducing enclosure space. This Short External Baying Brackets, CCEH, CCEH06 item measures 30x57x20mm with a material of Mild Steel, finish Zinc Plated.
Description: Short brackets mounted on the outside hole pattern of the frame of the bayed enclosures with an "auto spacer" function. Specially designed for small doors/pannels configuration. This method of baying mild steel enclosures has also the advanta
Material: 3 mm zinc plated steel.
Pack quantity: 6 brackets with mounthing material.
Comment: These brackets should only be used in combination with the small partial doors
Specifications
| Brand Name | nVent Hoffman | Size | 1.18 x 2.24 x 0.79 inch |
| Material | Steel | Type | IEC Enclosure Accessories |
| Application | Controls and Drives; Factory Automation and Process Control | UPC | 783510456252 |
Packages
| 1 - UNIT - 1 |
