HOFA16SL2U

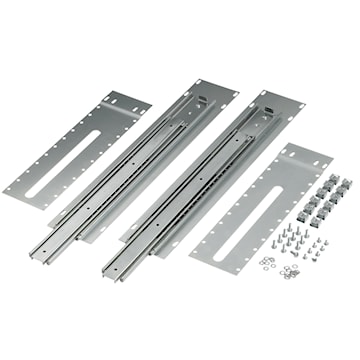

HOFFMAN A16SL2U Slide 3-section 17" extension plated 16"
Description
SLIDES, 16 IN X 17IN TRAVEL FITS RACK ANGLES STEEL/ZINC
Plated, heavy-duty ball bearing slide; three-sections, 16-in. (406-mm) in length, with 17-in. (423-mm) extension
Attaches to supports that mount between two pairs of rack-mounting angles that have accessory mounting legs. Needs to be used with the Rack Angle Adapter Bracket (PBRAA, PBRAA19 or PBRAA24).
Mounting hardware is furnished
Equipment 16.75-in. (425-mm) wide can be mounted between Slide assemblies installed on 19-in. rack angles. A pair of Slides can support up to 160 lb. at the extended position when load is distributed evenly along the 16-in. (406-mm) Slide length.
Specifications
| Brand Name | nVent Hoffman | Sub Brand | ProLine |
| Item Name | Ball Bearing Slide | Material | Steel |
| Type | 3-Section | Color/Finish | Zinc Plated |
| Application | Controls and Drives | UPC | 783510131005 |
Packages
| 1 - UNIT - 1 |
