HOFPRB50

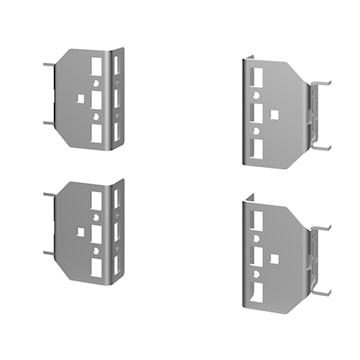

HOFFMAN PRB50 Bracket reducing for frames or grid straps 50mm
Description
1.97 INCH W ZINC PLATED YELLOW CHROMATE 14 GAUGE STEEL FRAME WIDTH REDUCING BRACKET; USED ON P20 SERIES 700/800 MM W MODULAR ENCLOSURE SYSTEM; PROLINE[R] BRAND
Furnished in set of four; mounting hardware included
14 gauge (1.75 mm) conductive steel
Mount directly to 700- or 800-mm wide ProLine frames or to grid straps. Converts wider frames to 600-mm wide, allowing 19-in. rack angles to fit, or to 700-mm wide, allowing 23-in. rack angles to fit.
Can also be used to left- or right-justify the rack-mounted equipment through the use of a single bracket or combination of brackets.
Specifications
| Brand Name | nVent Hoffman | Sub Brand | ProLine |
| Size | 50mm + 50mm | Material | Steel |
| Type | Rack and Grid/Rail System | Application | Controls and Drives |
| UPC | 783510772802 |
Packages
| 1 - UNIT - 1 |
