HOFMTR1279
HOFFMAN MTR1279 "19"" SHELF 3U 432X279"
Description

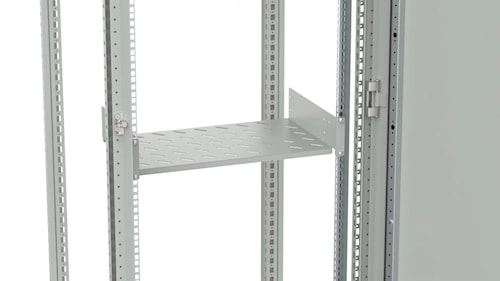

This shelf for 19-inch profiles can be adjusted in height and provides further mounting possibilities. This Front Fixation 19-inch Shelf, MTR, MTR1279 item measures x482.6x250mm has a material of Steel color Light Gray, finish Zinc Plated.
Description: For front mounting. The tray can be adjusted towards front or rear. Ventilation openings.
Additional information: Can be used with swing frames.
Material: 1.5 mm steel.
Finish: RAL 7035.
Pack quantity: 1 complete kit with mounting material.
The shelf can be mounted within enclosures using front 19-inch profiles only, such as in swing frames
The shelf can be adjusted in height and provides further mounting possibilities, allowing components that do not have 19-inch fixation brackets, to be installed
The ventilation openings do not prevent the enclosure's air circulation which reduces the risk of potential hot spots
Max. loading: 150N
Specifications
| Brand Name | nVent Hoffman | Height | 17.63 in |
| Width | 17.38 in | Depth | 9.84 in |
| Material | Steel | Color | Gray |
| Finish | Zinc | UPC | 783510523787 |
Packages
| 1 - UNIT - 1 |
