HOFSPD1805
HOFFMAN SPD1805 SEPARATION PLATE 1800X500
Description

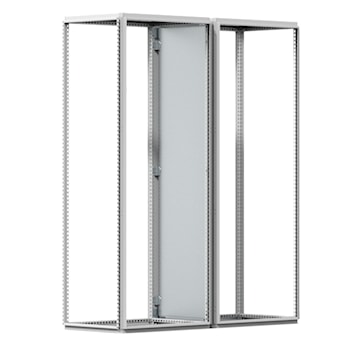

Separation Plates for MCS, MCD Enclosures, SPD separates bayed enclosures for a barrier and mounting space. This Separation Plates for MCS MCD Enclosures, SPD, SPD1805 item measures 1800x13x500mm with a material of Steel, finish Zinc Plated
Description: Separates two bayed MCS/MCD enclosures.
Material: 1.5 mm zinc plated steel.
Mounting requirements: IP 43 and TYPE 1 sealing can be obtained by using SPDG gasket. CCJ brackets are required to mount the SPD into the enclosures. To bay enclosures together, use CCM and CCI brackets. For EMI shielding the SPDEG gasket must be used.
Pack quantity: 1 piece.
Benefit: these areas are commonly used to group component types, for example power in one section and control in another
Benefit: these spaces can also be used when some components are more sensitive to temperature than others, allowing better control of the enclosure's thermal management
Comment: separation brackets, CCJ, are required in order to mount the separation plate; if the separation plate is mounted within an enclosure assembly, the internal corner baying kit, CCM, and external baying brackets, CCI, should be used
Mounting the separation gasket, SPDG, will increase the protection degree on either side of the plate to IP 43; the separation plate cannot be mounted within stainless steel enclosures
Mounting requirements: IP 43, TYPE 1 sealing can be obtained by using SPDG gasket and CCJ brackets are required to mount the SPD into the enclosures
Mounting requirements: to bay enclosures together, use CCM and CCI brackets. For EMI shielding the SPDEG gasket must be used
Specifications
| Brand Name | nVent Hoffman | Type | IEC Enclosure Accessories |
| Height | 67.64 in | Width | 0.49 in |
| Depth | 15.98 in | Material | Steel |
| Finish | Zinc | Thickness | 1.5 mm |
| Color | Unpainted | Application | Factory Automation and Process Control; Controls and Drives |
| UPC | 783510528324 |
Packages
| 1 - UNIT - 1 |
