HOFESFB08
HOFFMAN ESFB08 SUPPORT BAR 800 (2)
Description

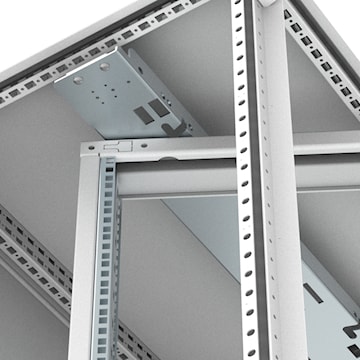

Swing Frame Transversal Support Bars, ESFB allow partial or full height swing frame mounting saving space for accessories. This Swing Frame Transversal Support Bars, ESFB, ESFB08 item measures 61x760x103mm with a material of Steel, finish Zinc Plated.
Description: For full height mounting of swing frames in steel
Material: 3 mm zinc plated steel.
Mounting requirements: Support bars (ESFB) 600 mm wide can also be mounted directly into a 1200 mm wide enclosure by means of a VBD. Support bars (ESFB) 800 mm wide can also be mounted directly in 1600 mm wide enclosures.
Pack quantity: One complete kit for a swing frame.
Comment: click-in profiles, CLPK are required to mount partial height swing frames
Mounting requirements: support bars (ESFB) 600 mm wide can also be mounted directly into a 1200mm (47)wide enclosure by means of a VBD; support bars (ESFB) 800mm (31) wide can also be mounted directly in 1600mm (63) wide enclosures
Specifications
| Brand Name | nVent Hoffman | Width | 29.92 in |
| Height | 2.4 in | Material | Steel |
| Type | IEC Enclosure Accessories | Thickness | 3 mm |
| Application | Factory Automation and Process Control; Controls and Drives | UPC | 783510480288 |
Packages
| 1 - UNIT - 1 |
