HOFESFH180

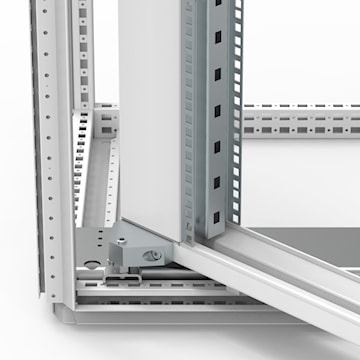

HOFFMAN ESFH180 SWINGFRAME HINGE 180 DEGREE
Description
Swing fram hinges 180-degree allows the swing frame to be opened up to 180ยบ. This Swing Frame Hinges 180-Degree, ESFH, ESFH180 item measures 25x85x52mm with a material of Mild Steel, finish Zinc Plated.
Description: Allows the swing frame to be opened up to 180º. Adjustable top hinge for square mounting of the swing frame. Smart hinge point position giving maximum build-in depth.
Material: Zinc plated steel.
Pack quantity: 1 set.
Mounting requirements: To be used in combination with ESFS mounted in 800 mm, 1000 mm and 1200 mm wide enclosures.
Comment: the zinc plated steel 180-degree hinges are included with the swing frame ESFM, however must be ordered as an accessory for swing frames, ESFS and ESFC; the hinges are only compatible with the 600mm (24) wide swing frame ESFC if it is mounted in
Mounting requirements: to be used in combination with ESFS mounted in 800mm (31), 1000mm (39) and 1200mm (47) wide enclosures
Specifications
| Brand Name | Hoffman | Type | IEC Enclosure Accessories |
| Finish | Zinc Plated | Material | Mild Steel |
| Color | Unpainted | Application | Stationary Machinery and Equipment Outside Factory |
| UPC | 783510480554 |
Packages
| 1 - UNIT - 1 |
