HOFFMS01
HOFFMAN FMS01 SLAVE DOOR INTERLOCKING KIT
Description
secondary door interlock kit prevents opening a secondary enclosure when the primary door is closed. This secondary door interlock kit, FMS, FMS01 item measures 76x176x53mm with a material of Mild Steel, finish Zinc Plated.

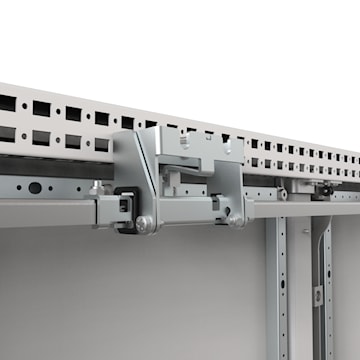

Description: Mounted to the slave door of both single and double door enclosures. Slave door is prevented from opening when master door is closed. This safety feature can be activated separately even when the main door interlocking device is not installed
Material: Zinc plated steel.
Pack quantity: 1 set with mounting material.
Benefit: the secondary door is fully dependant upon the enclosure's primary door when mounted along with the system actuator FMA and the interlocking bar FMB; this means that the secondary door may only be opened by first opening the primary door
Comment: to build an enclosure system that consists of multiple doors each with an integrated interlocking system then each neighboring primary and secondary door will require an interlocking system to be mounted
The interlocking system consists of: system actuator FMA, interlocking bar FMB and a secondary door interlock kit FMS
Specifications
| Brand Name | nVent Hoffman | Type | IEC Enclosure Accessories |
| Material | Steel | Color | Unpainted |
| Finish | Zinc | Application | Factory Automation and Process Control; Controls and Drives |
| UPC | 783510481353 |
Packages
| 1 - UNIT - 1 |
