HOFP2BGPD126G

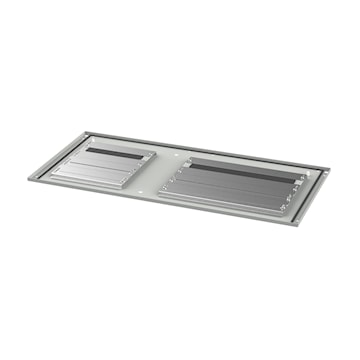

HOFFMAN P2BGPD126G Disconnect gland plate 1200x600mm
Description
PROLINE G2 disconnect components are used with PROLINE G2 disconnect frames and doors to configure a custom disconnect enclosure solution for widths 1000 mm wide. These components are identical to the standard PROLINE G2 components (i.e. PROLINE G2 solid tops, gland plates, mounting subpanel) with the exception that the center support is offset 100mm (to accommodate the hinged mullion).
Solution for widths <gt/>1000 mm wide
Consists of a base mounting surface and adjustable foam gasketed gland plates that permit cable entry
Sturdy, adjustable gland plates designed to bear the weight of a person
Number of plates varies with depth: 400 mm and 500 mm (3 plates); 600 mm (4 plates); 800 mm (6 plates); 1000 mm (8 plates)
Galvanized or painted versions
Sealed to maintain NEMA Type 12 rating
Gland Plates are finished with paint over plated surfaces
Can be used with Plinth Base (100 mm or 200 mm), 100 mm Solid Plinth Base, Mobile Base or Transportation Base
Can be used without a base if casters, levelers or frame feet are installed
Can be rotated 180 degrees for front or rear cable entry
Specifications
| Brand Name | Hoffman | Type | Bases and Base Accessories |
| Length | 48.00 in | Width | 26.00 in |
| Height | 7.00 in | Material | Steel |
| Application | Controls and Drives; Power Distribution | UPC | 783510341671 |
Packages
| 1 - UNIT - 1 |
