HOFTHERM16C

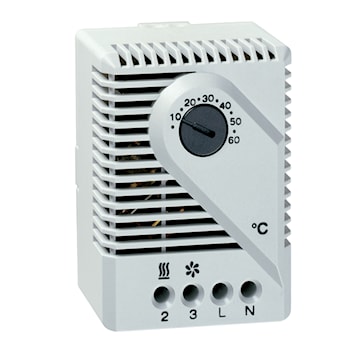

HOFFMAN THERM16C Thermostat Controller 10 mA, 115 V
Description
Mechanical thermostat for controlling filter fans and heaters. This Thermostat Controller, THERM16C item measures 2.64x1.97x1.50 inches with a material of Lt Gray, Plastic rated 115V Celcius.
Registers surrounding air and can switch inductive and resistive loads via snap-action contact
Clips for vertically mounting on 35 mm DIN rail (EN 60715)
An integrated resistor (RF) can be connected to improve the switch temperature difference
An integrated resistor (RF) can be connected to improve the switch temperature difference
Specifications
| Brand Name | nVent Hoffman | Item Name | Thermostat Controller |
| Control Range | 5 - 60 °C | Switch Action | NO, NC, Snap |
| Voltage Rating | 115 V | Amperage Rating | 10 mA |
| User Interface | Mechanical | Sensor Type | Bi-Metal |
| Mounting Type | DIN Rail | Color | RAL 7035 Light Gray |
| Dimensions | 1.97 in W x 1-1/2 in D x 2.64 in H | Standards | cURus File Number E164102, CE Marked |
| Application | For Controlling Filter Fans and Heaters | UPC | 783510359218 |
Packages
| 1 - UNIT - 1 |
